Experienced supplier of MANUAL PHOTOPTER VT-5B

Product

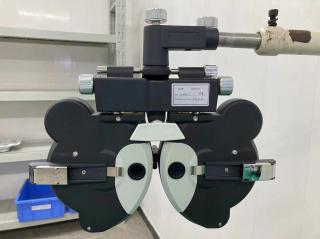

MANUAL PHOTOPTER VT-5B

Sphere powers range:	+16.75D to - 19.00D, with minimum reading 0.25D or 0.12D (When +0.12D auxiliary lens or optional±0.12D lens is in use)
Cylinder powers range:	0 to - 6.00D, with minimum reading 0.25D or 0.12D (when auxiliary lens is in use) 0 to- 8.00D (when - 2.00D auxiliary lens is in use)
Astigmatic axis scale:	0° to 180°, each step is 5°
Cross cylinder:	±0.25D, reversal type (synchronized with astigmatic axis), also can select ±0.50D
Rotary prism:	0 to 20'△D , each step is 1△D
lnterpupillary adjustment:	50mm to 80mm , each step is 1 mm (right and left synchronized)
Forehead rest adjustment:	16mm backward and forward
Convergence:	The optical axes of the lenses are aligned at a distance of 400mm from the vertexes of the corneas (2mm each for right and left inward) lnterpupillary distance enabling convergence=57mm to 80mm
Corneal distance device:	2mm forward and 5mm backward from standard plane with scale
Effective visual range:	19mm
Weight:	5kgs
Size:	323mmx315mmx85mm
