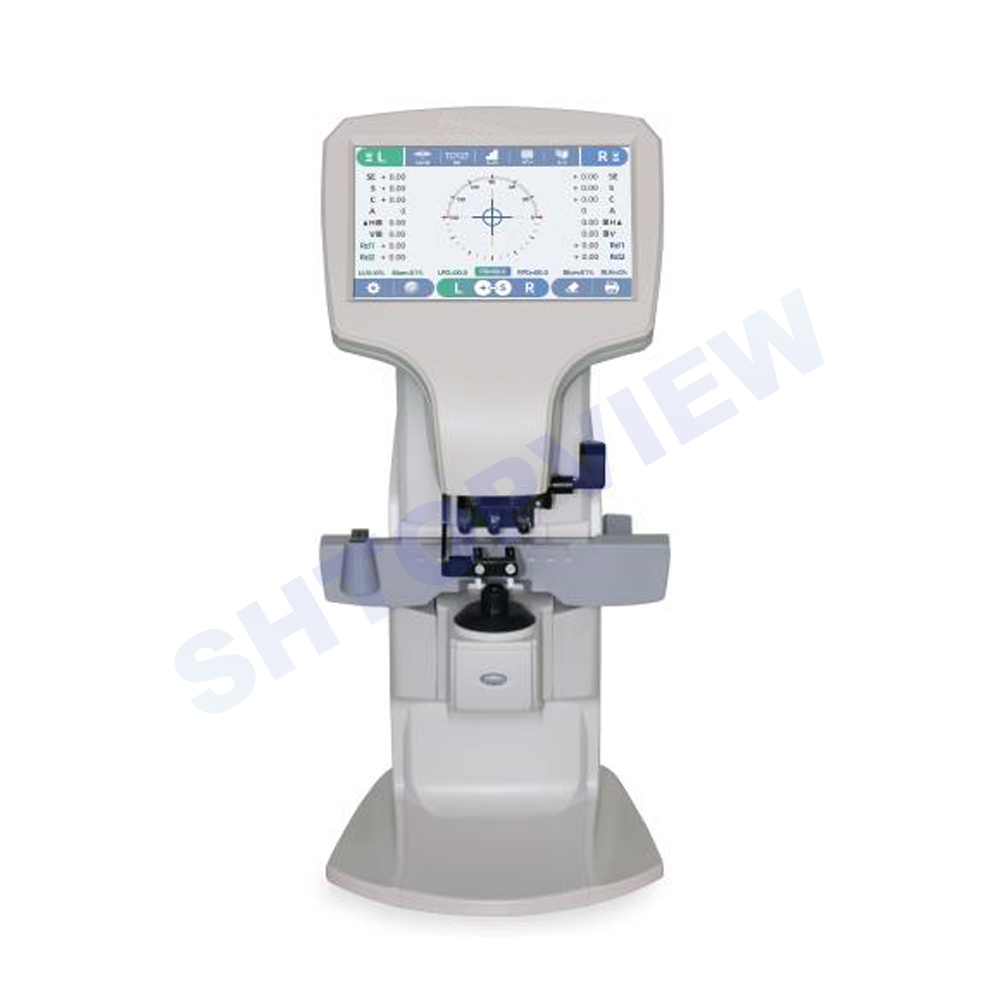

China new model L800 auto lens meter

Product Application

This device is a precise instrument which uses Hartmann array principle, combines precise image analysis and processing technology, and can measure all kinds of lenses.

It's used to measure the spherical lens, cylindrical power, axis of astigmatism, the frame lenses PD values, and provide the reference data for glasses making.

The measurement data can be displayed on the screen, or press the print key to print the data directly.

Specification:

Measuring range	Sphere	0 to ±35D（0.01D/0.06D/0.12D/0.25D steps)
Measurement Range		Accuracy
<0D, ≥-5D	>0D, ≤+5D	± 0.06D
<-5D, ≥-10D	>+5D, ≤+10D	± 0.09D
<-10D, ≥-15D	>+10D, ≤ +15D	± 0.12D
<-15D, ≥-20D	>+15D, ≤+20D	± 0.18D
<-20D, ≥-35D	>+20D, ≤+35D	± 0.25D
Measuring range	Cylinder	0 to ±10D（0.01D/0.06D/0.12D/0.25D steps)
	Axis	0°to 180°（1°step)
	ADD	0 to 10D（0.01D/0.06D/0.12D/0.25D steps)
	Prism	0 to 15△(0.01△)
Measurement Range		Accuracy
>0Δ, ≤5Δ		0.1Δ
>5Δ, ≤15Δ		0.2Δ
Cylinder mode		+, +/-, -
Prism mode	X-Y	cartesian coordinates H:I,O; V:U,D.
	P-B	polar coordinates
	mm	mm expression
Reading resolving power	0.01D, 0.06D, 0.12D, 0.25D
Function	PD measure
	Measure single vision lens, bifocal lens, trifocal lens and progressive lens, etc
	Contact lens measure
	UV transmissivity
Measurable transmissivity	＞10%; ＞20% at ±10D and over
Contact lens	0 to ±25D, BC 6.00 to 9.00
Display	7-inch TFT LCD
Menu	readable diagram, easy operation
Lens diameter	20mm～100mm
Power source	AC100(±10%)～240(±10%)V, 50/60HZ, 40VA
Power consumption	40W
Weight	4kgs
Dimensions	190210420mm（WDH）
Environmental condition	Temperature	5℃～40℃（in usage）
		-20℃～60℃（in storage/transference）
	Humidity	30～85%（non-condensing）（in usage）
		10～95%（in storage/transference）
Atmospheric pressure	700～1060hpa
Altitud	up to 2000m
Others	no harmful dust or smoke

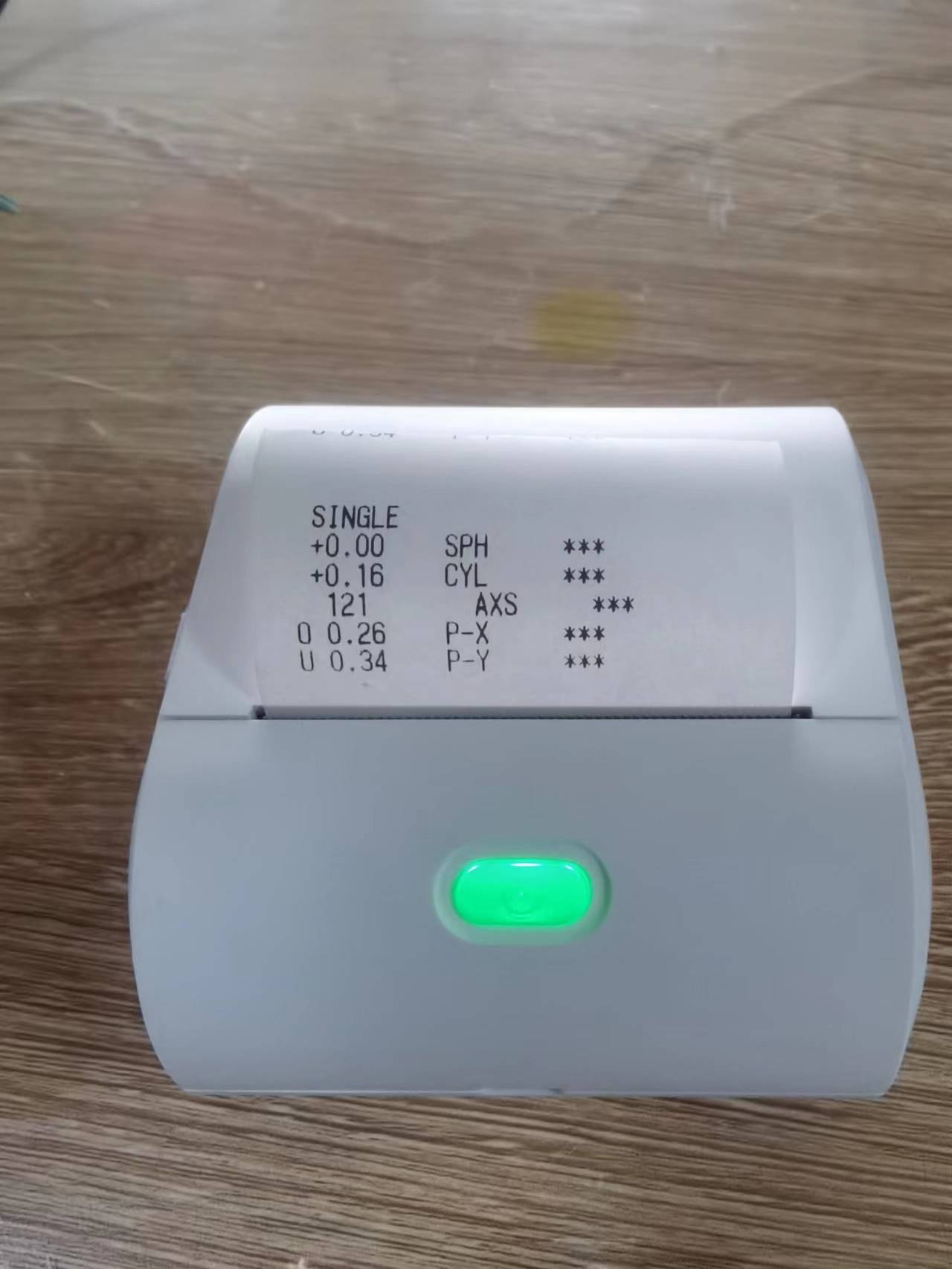

Optional accessories	printer（built-in thermosensitive paper size：57mm）

Features

Green LED light source, ABBE compensation no required
Hartman testing method, CPU high-speed precise computing
Automatic identifying the lens type, Automatic measurement, Automatic reading and memorying the data
5.7 inch high resolving power LED screen
Broad contents, strong performances, simple and convenient operation
Latest international designing concept of collecting technology, mode and individuality

Package & delivery

Packing size:

1 standard export cartons: 53*32*31，6kg
